3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines

3kw servo motor edge polisher

acrylic edge polisher for PMMA

1350mm plastic polishing machine

起源の場所:

中国広東ンジ

ブランド名:

SAIDEX

証明:

CE

モデル番号:

SD-1350FX

私達に連絡しなさい
引金 を 求め て ください
プロダクト細部
研磨可能サイズ:
1350mm(長さ)×120mm(厚さ)
使用法:
アクリルエッジ研磨
重さ:
1000KG
機器の種類:
アクリル研磨機
パッキング:
木箱
つぶやきます:
0-60°
現在:
10-16a
スピード:
6000〜12000 RPM
ホイール材料の研磨:
アクリル,PC,PS,PE,隔熱材料
色:
クリア
磨き距離:
1350mm
磨き車速さ:
6000RPM
切断角:
0-60°
力:
3kw
保証:
1年
ハイライト:

3kw servo motor edge polisher

,

acrylic edge polisher for PMMA

,

1350mm plastic polishing machine

支払及び船積みの言葉
最小注文数量
1セット
価格
Confirm price based on product
パッケージの詳細
1p/紙箱
受渡し時間
交渉される
支払条件
T/T
供給の能力
1か月あたり10000セット/セット
製品の説明





Arcylic polisher:

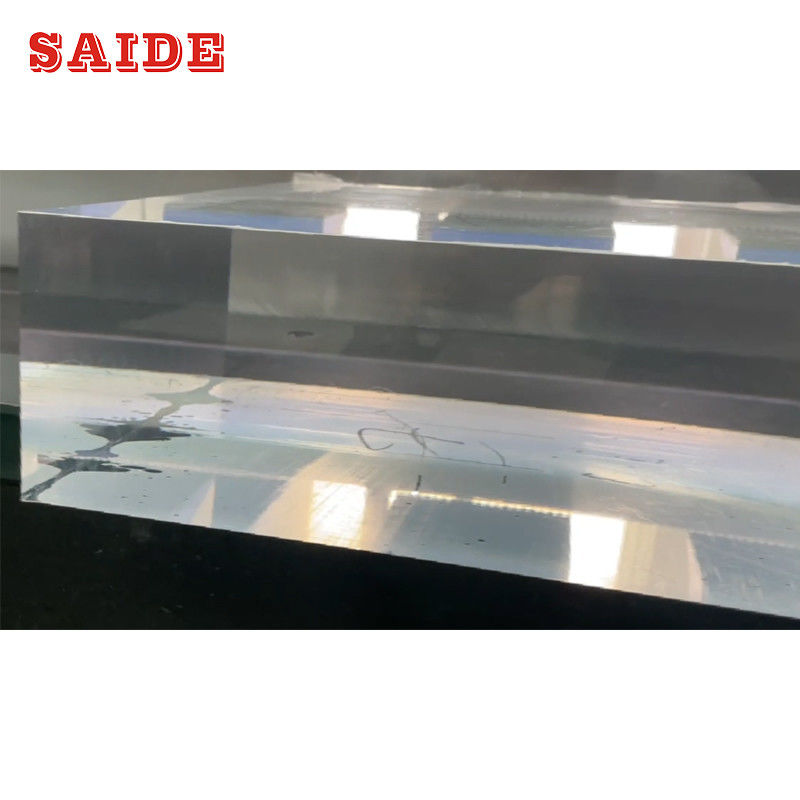

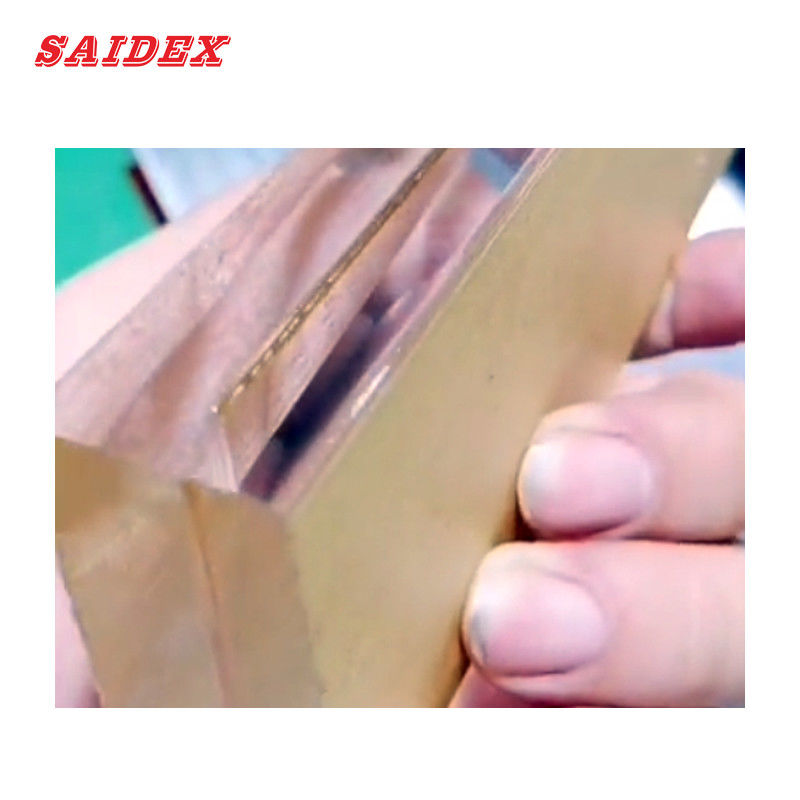

Acrylic polishing machine is a machine that uses the polishing knifes to cut and polish the edges of acrylic,it can achieves a mirror-like finish, providing unparalleled flatness and crystal-clear brilliance.



Widely used in acrylic, PMMA, PS, PC, PET, PE and other plastic plates and products sanding and polishing.

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 03kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 13kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 23kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 3

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 43kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 53kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 6

Product Features:

1.The main structure ofthe natural marble,which isfeatured with strong stability, effectively avoidinothe easy deformation ofiron casting;

2.Servo motor drive, can achieve high speed, high precision positioning control ;

3.The processing speed is quick,and it can reach 2 meters per minute,and the reset speed, up to 30meters per minute ;

4.No adiustment, fast installation,accurate adjustment,the tooi is directly installed in place,without adiustment.simple operation and fast material claming;

5.Infinite circular process(it can be reprocessed withoutstandby);With safety protection device;

6.With safety protection device.



Unit Type SD-1350FX
Machine Size 1900mm(L) x1080mm(W) x 1500mm(H)
Power Supply AC380
Work Area 1350mm(L) x120mm(T) (extensible)
Spindle Speed 6000-12000rpm
Processing Speed 0-2m/min
Cutting angle 0-60°
Air pressure input ≥0.5mpa
Machine power 3kw
Processing straight line accuray 0.03mm
Processing way Servo motor feeding
Dust collector pipe Dia φ100mm
Machine Wight 1000kg

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 73kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 83kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 9

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 103kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 113kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 123kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 13

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 14

About US:



Dongguan saide electromechanical equipment Co.,LTD.-is manufacturer specializing in the development and production Special processing acrylic plastic, insulating material equipment(PMMA,PS,MS,PE,PET,PC,PP,ABS,Bakelite, Epoxy Board) and acrylic processing tools.Years of actual production experience,frst-class service and professional technology have enable our company inthe leading position in the industry since its establishment in2008.



The company in line with "the quality first,the customer is supreme","excellent quality,reasonable price,honest trades has won high praise and the approval,and beloved by the domestic and overseas customers.The company adheres to the principle of"our efforts,customers benefit",we sincerely to provide satisfactory products and services with professional standards and unremitting efforts.



Our products have been exported to United States,Canada,Germany,France,Italy,Saudi Arabia,UAE,India,Singapore,Thailand,Indonesia,South Korea,Japan etc countries.
